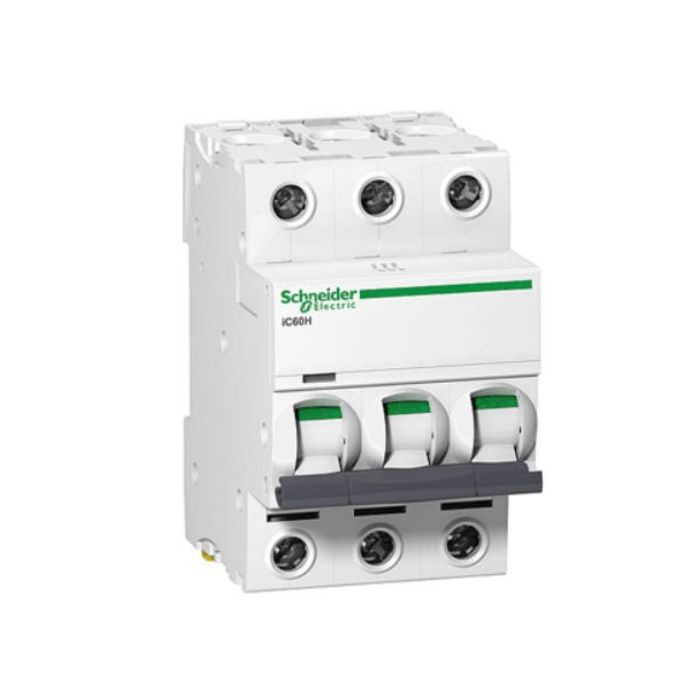

Schneider Miniature Circuit Breaker C Curve 6Amp 6 kA 3Pole 3Module 54mm DIN Rail/Clip-On Mount
Schneider Miniature Circuit Breaker C Curve 6Amp 6 kA 3Pole 3Module 54mm DIN Rail/Clip-On Mount
In stock
SKU
SHNA9F44306
Miniature Circuit Breaker C Curve C Curve, 440 Volt AC, 6 Amp, 50/60 Hz, Interrupt Capacity: 6 kA, Number of Modules: 3, 54mm Module Width, Number of Poles: 3, Trip Characteristic: C Curve, Toggle Actuator, 2 N/m Top/Bottom Tightening Torque, 1 to 25 mm Rigid, 1 to 16 mm Flexible Terminal Capacity, IP20 Conforming to IEC 60529, 10000 Cycles, DIN Rail, Clip-On, White,-35 to 70 deg C, 85mm Height x 54mm Width x 78.5mm Depth
| Features |
|
|---|---|
| Brand | Schneider |
| Range Name | Acti 9 iC60N |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | A9F44306 |
| Actuator Type | Toggle |
| Colour | White |
| Current | 6 Amp |
| Depth | 78.5mm |
| Electrical Life | 10000 Cycles |
| Frequency | 50/60 Hz |
| Height | 85mm |
| Interrupt Capacity | 6 kA |
| IP Rating | IP20 |
| Modules | 3 Module 54mm |
| Mounting Method | DIN Rail/Clip-On |
| Number Of Poles | 3 Pole |
| Product Type | Mini Circuit Breakers |
| Temperature | -35 to 70 deg C |
| Tightening Torque | 2 N/m Top/Bottom |
| Voltage | 440 Volt |
| Width | 54mm |
Description
Miniature Circuit Breaker C Curve C Curve, 440 Volt AC, 6 Amp, 50/60 Hz, Interrupt Capacity: 6 kA, Number of Modules: 3, 54mm Module Width, Number of Poles: 3, Trip Characteristic: C Curve, Toggle Actuator, 2 N/m Top/Bottom Tightening Torque, 1 to 25 mm Rigid, 1 to 16 mm Flexible Terminal Capacity, IP20 Conforming to IEC 60529, 10000 Cycles, DIN Rail, Clip-On, White,-35 to 70 deg C, 85mm Height x 54mm Width x 78.5mm Depth
