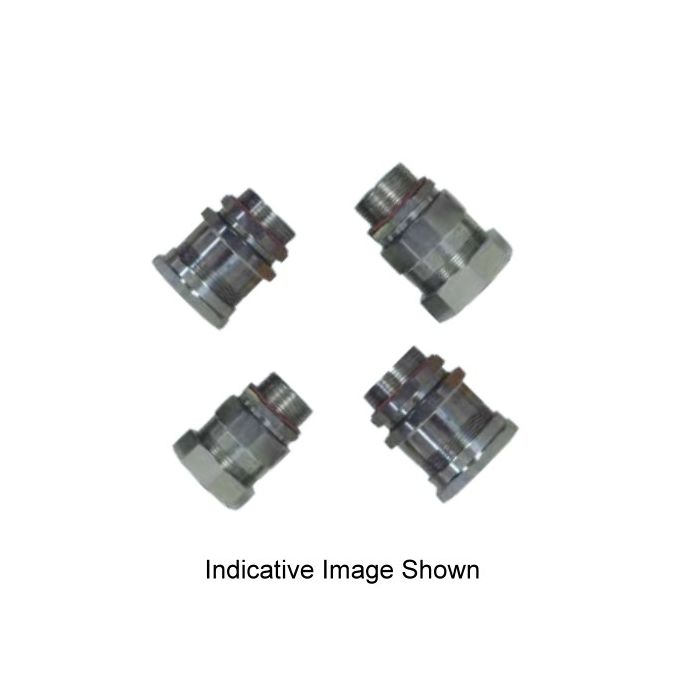

PowerForce Metal Cable Gland Armoured General Purpose 72.6-76.2mm 2.5 BSP IP66/68
PowerForce Metal Cable Gland Armoured General Purpose 72.6-76.2mm 2.5 BSP IP66/68
In stock
SKU
REEPOWWGA754
Metal Cable Gland, Armoured, General Purpose, 2.5 BSP, 19 mm Thread Length, 72.6 mm Min. Sheath OD, 76.2 mm Max. Sheath OD, 63.5 mm Max. Bedding OD, 2.5 mm Min. Armour Wire, 3.15 mm Max. Armour Wire, 115.6 mm Width Across Corners, 93 mm Protrusion Length, IP66/68, Brass Body, Nickel Plated Finish
| Features |
|
|---|---|
| Brand | PowerForce |
| Range Name | Type WGA |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | POWWGA754 |
| Body Material | Brass |
| Finish | Nickel Plated |
| IP Rating | IP66/68 |
| Max. Armour Wire | 3.15 mm |
| Max. Bedding OD | 63.5 mm |
| Max. Sheath OD | 76.2 mm |
| Min. Armour Wire | 2.5 mm |
| Min. Sheath OD | 72.6 mm |
| Product Type | Cable Glands Metal |
| Protrusion Length | 93 mm |
| Thread Length | 19 mm |
| Thread Size | 2.5 BSP |
| Width Across Corners | 115.6 mm |
Description
Metal Cable Gland, Armoured, General Purpose, 2.5 BSP, 19 mm Thread Length, 72.6 mm Min. Sheath OD, 76.2 mm Max. Sheath OD, 63.5 mm Max. Bedding OD, 2.5 mm Min. Armour Wire, 3.15 mm Max. Armour Wire, 115.6 mm Width Across Corners, 93 mm Protrusion Length, IP66/68, Brass Body, Nickel Plated Finish
