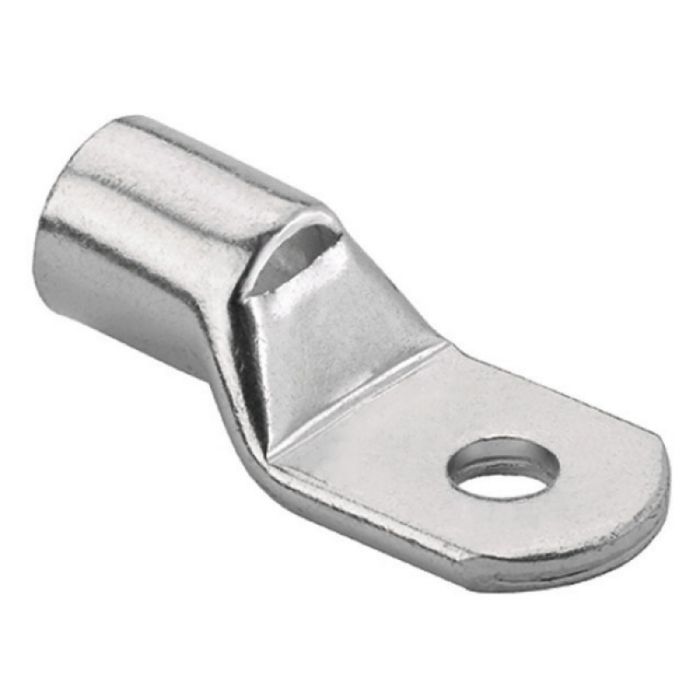

Panduit Crimp Lug Standard with Inspection Window Copper 120mm M10 Stud 65mm OAL
Panduit Crimp Lug Standard with Inspection Window Copper 120mm M10 Stud 65mm OAL
In stock
SKU
PANLCMA120-10-L
The Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90 deg C.
| Features |
|
|---|---|
| Brand | Panduit |
| Standard Pack Size | 100 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | LCMA120-10-L |
| Barrel Length | 24.5 mm |
| Barrel Type | Standard |
| Body Material | Copper |
| Conductive Material | Copper |
| Conductor Size | 120 mm |
| Crimping Die | P62 |
| Finish | Tin Plated |
| Inside Diameter | 15.2 mm |
| Lug Length | 30 mm |
| Lug Thickness | 3.5 mm |
| Lug Width | 27.5 mm |
| Number of Holes | 1 |
| Outside Diameter | 18.6 mm |
| Overall Length | 65 mm |
| Palm Type | Straight |
| Please Note | with Inspection Window |
| Stud Size | 10 mm |
| Temperature | 90 deg C |
Description
The Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90 deg C.
