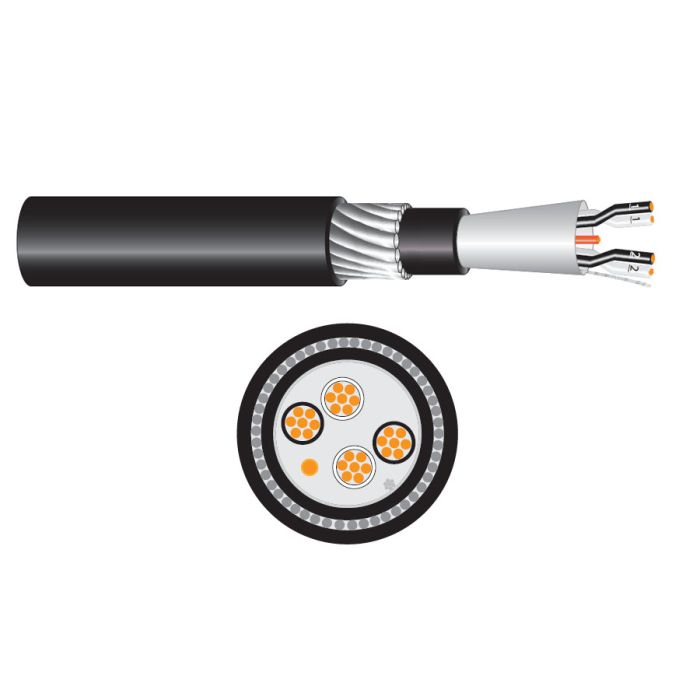

Dekoron 1875 Instrumentation Cable Armoured 2 Pair Overall Screened 1.5mm 110/150V PVC/SWA/PVC Black
Dekoron 1875 Instrumentation Cable Armoured 2 Pair Overall Screened 1.5mm 110/150V PVC/SWA/PVC Black
In stock
SKU
DKNA1875-60280
Instrumentation Cable, Armoured, 2 Pair, Overall Screened, 1.5 mm, Bare Copper, 110/150 Volt, 7/0.5 mm Strands, 14.656 mm Overall Diameter, 197.61 mm Bend Radius, Conductor Resistance: 13.76 Ohm/km, Aluminium/Polyester Tape Screen, Galvanised Steel Wire Armour, Flame Retardant V-90HT PVC Insulation, Flame Retardant PVC Sheath, Black White & Numbered Cores, Black Sheath, AS/NZS 3808: IEC 60079, AS/NZS 1125: IEC 60332
| Brand | Dekoron |
|---|---|
| Range Name | Type 1875 |
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | A1875-60280 |
| Armour Material | Galvanised Steel Wire |
| Bend Radius | 197.61 mm |
| Conductor Resistance | 13.76 Ohm/km |
| Conductor Type | Bare Copper |
| Core Colours | Black/White Numerals |
| Insulation Material | Flame Retardant V-90HT PVC |
| Number of Pairs | 2 Pair |
| Overall Diameter | 14.656 mm |
| Product Type | Instrumentation Cable Armoured |
| Screen Format | Overall Screened |
| Screen Material | Aluminium/Polyester Tape |
| Sheath Colour | Black |
| Standards | AS/NZS 3808: IEC 60079 AS/NZS 1125: IEC 60332 |
| Sheath Material | Flame Retardant PVC |
| Stranding | 7/0.5 mm |
| Voltage | 110-150 Volt |
| Conductor Size | 1.5 mm |
Description
Instrumentation Cable, Armoured, 2 Pair, Overall Screened, 1.5 mm, Bare Copper, 110/150 Volt, 7/0.5 mm Strands, 14.656 mm Overall Diameter, 197.61 mm Bend Radius, Conductor Resistance: 13.76 Ohm/km, Aluminium/Polyester Tape Screen, Galvanised Steel Wire Armour, Flame Retardant V-90HT PVC Insulation, Flame Retardant PVC Sheath, Black White & Numbered Cores, Black Sheath, AS/NZS 3808: IEC 60079, AS/NZS 1125: IEC 60332
