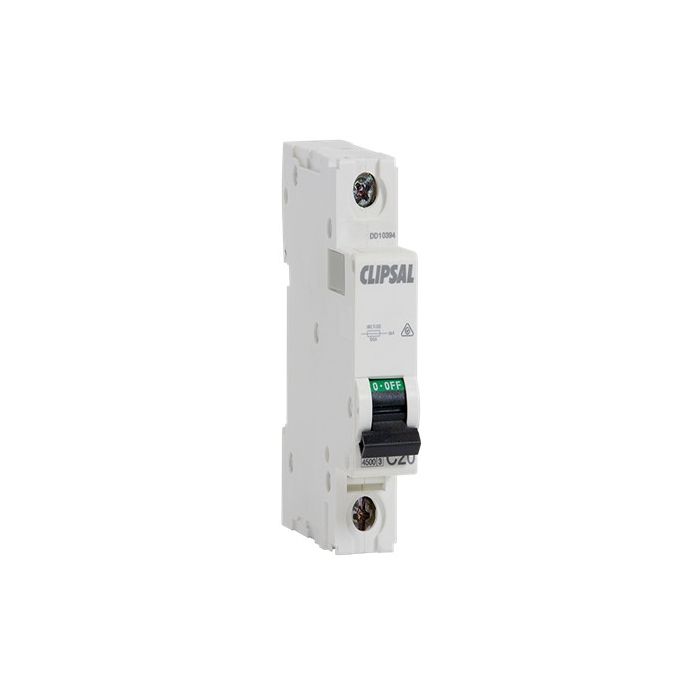

Clipsal ResiMax Miniature Circuit Breaker C Curve 10Amp 4.5 kA 1Pole 1Module 18mm DIN Rail Mount
Clipsal ResiMax Miniature Circuit Breaker C Curve 10Amp 4.5 kA 1Pole 1Module 18mm DIN Rail Mount
In stock
SKU
CLIMCB4-110
Miniature Circuit Breaker C Curve C Curve, 240 Volt, 10 Amp, 50/60 Hz, Interrupt Capacity: 4.5 kA, Number of Modules: 1, 18mm Module Width, Number of Poles: 1, 1, Trip Characteristic: C Curve, 2 N/m Tightening Torque, 0.75 to 16 mm Rigid, 0.33 to 10 mm Flexible/Ferrule Terminal Capacity, IP20, IP40, 20000 Cycles, DIN Rail,-25 to 70 deg C, 81mm Height x 18mm Width x 78.5mm Depth
| Features |
|
|---|---|
| Brand | Clipsal |
| Range Name | Resi MAX |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | MCB4-110 |
| Current | 10 Amp |
| Depth | 78.5mm |
| Electrical Life | 20000 Cycles |
| Frequency | 50/60 Hz |
| Height | 81mm |
| Interrupt Capacity | 4.5 kA |
| IP Rating | IP20/40 |
| Modules | 1 Module 18mm |
| Mounting Method | DIN Rail |
| Number Of Poles | 1 Pole |
| Phase | 1 Phase |
| Product Type | Mini Circuit Breakers |
| Temperature | -25 to 70 deg C |
| Tightening Torque | 2 N/m |
| Voltage | 240 Volt |
| Width | 18mm |
Description
Miniature Circuit Breaker C Curve C Curve, 240 Volt, 10 Amp, 50/60 Hz, Interrupt Capacity: 4.5 kA, Number of Modules: 1, 18mm Module Width, Number of Poles: 1, 1, Trip Characteristic: C Curve, 2 N/m Tightening Torque, 0.75 to 16 mm Rigid, 0.33 to 10 mm Flexible/Ferrule Terminal Capacity, IP20, IP40, 20000 Cycles, DIN Rail,-25 to 70 deg C, 81mm Height x 18mm Width x 78.5mm Depth
