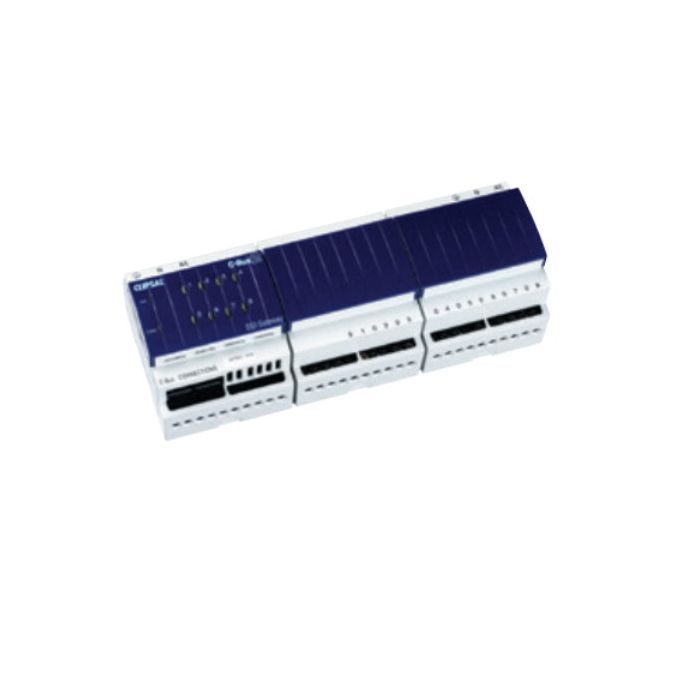

Clipsal C-Bus DIN Rail Dimmer 8 Channel 240V 270mA without Power Supply For DSI Ballast
Clipsal C-Bus DIN Rail Dimmer 8 Channel 240V 270mA without Power Supply For DSI Ballast
In stock
SKU
CLIL5508DSIP
DIN Rail Dimmer, Dimmer: 220-240 Volt AC, C-Bus: 15-36 Volt DC, Total: 270 mA, Per Channel: 200 mA, Frequency: Network: 47-53 Hz, 57-63 Hz, Number of Channels: 8, Number of Outputs: 100 Per Channel, Number of Modules: 12, Connector Type: RJ45 for C-Bus, RJ45 for Remote Override, Network Type: C-Bus, Load Type: DSI Ballast, Mounting Method: DIN Rail, Temperature: 0 to 45 deg C, Dimensions: 215mm Width x 85mm Height x 65mm Depth
| Features |
|
|---|---|
| Brand | Clipsal |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121800 |
| UOM | EA |
| Vendor Product | L5508DSIP |
| Channels | 8 Channel |
| Current | Total: 270 mA/Per Channel: 200 mA |
| Dimensions | 215mm Width x 85mm Height x 65mm Depth |
| Frequency | Network: 47-53 Hz/57-63 Hz |
| Mounting Method | DIN Rail |
| Network Type | C-Bus |
| Load Type | DSI Ballast |
| Product Type | Dimmers |
| Temperature | 0-45 deg C |
| Voltage | Dimmer: 220-240 Volt AC/C-Bus: 15-36 Volt DC |
Description
DIN Rail Dimmer, Dimmer: 220-240 Volt AC, C-Bus: 15-36 Volt DC, Total: 270 mA, Per Channel: 200 mA, Frequency: Network: 47-53 Hz, 57-63 Hz, Number of Channels: 8, Number of Outputs: 100 Per Channel, Number of Modules: 12, Connector Type: RJ45 for C-Bus, RJ45 for Remote Override, Network Type: C-Bus, Load Type: DSI Ballast, Mounting Method: DIN Rail, Temperature: 0 to 45 deg C, Dimensions: 215mm Width x 85mm Height x 65mm Depth
