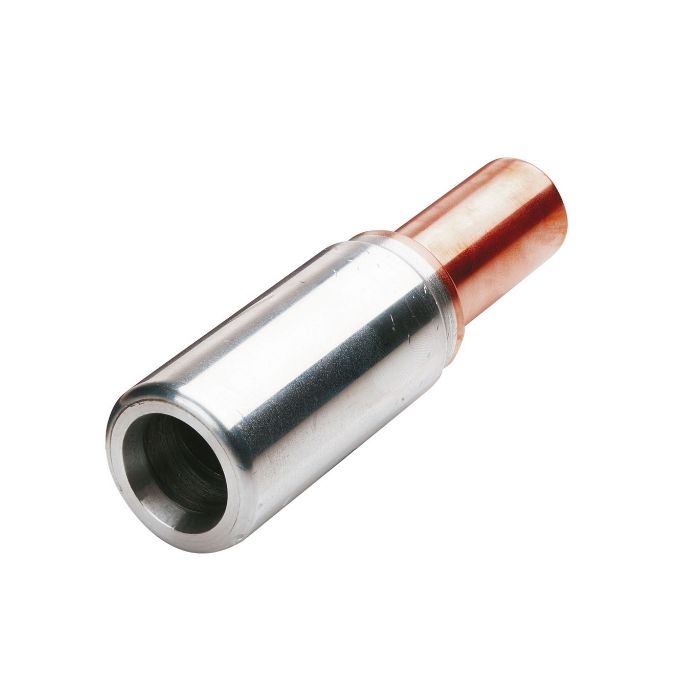

Cabac Crimp Link Reducing Bi-Metal 16mm 10mm 7/1.04 7/1.35 70mm OAL
Cabac Crimp Link Reducing Bi-Metal 16mm 10mm 7/1.04 7/1.35 70mm OAL
In stock
SKU
CAABLK16/10
For stranded sector and circular stranded aluminium to stranded copper cable. The CABAC range of bi-metal crimp links are made to Australian dimensions and can be crimped with Australian standard tooling. They are friction welded from the highest quality aluminium (99.6% pure) and copper (99.9% pure). The barrels are coated with jointing compound, and the links are individually packed in plastic bags. A full range of standard sizes are available however, virtually any link can be machined to order at short notice.
| Features |
|
|---|---|
| Brand | Cabac |
| Range Name | Reducing Links Bi-Metal |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | BLK16/10 |
| Body Material | Aluminium/Copper |
| Conductive Material | Aluminium/Copper |
| From A-F Hex Die | 22 mm |
| From Conductor Size | 16 mm |
| From Crimping Die | HT-6/35AL |
| From Number of Crimps | 1 |
| From Inside Diameter | 5.5 mm |
| From Number of Strands | 37/2.25 |
| Overall Length | 70 mm |
| Product Type | Links Reducing Type |
| To Crimping Die | K06 |
| To Conductor Size | 10 mm |
| To A-F Hex Die | 7.7 mm |
| To Inside Diameter | 4.5 mm |
| To Number of Crimps | 1 |
| To Number of Strands | 19/1.35 |
Description
For stranded sector and circular stranded aluminium to stranded copper cable. The CABAC range of bi-metal crimp links are made to Australian dimensions and can be crimped with Australian standard tooling. They are friction welded from the highest quality aluminium (99.6% pure) and copper (99.9% pure). The barrels are coated with jointing compound, and the links are individually packed in plastic bags. A full range of standard sizes are available however, virtually any link can be machined to order at short notice.
