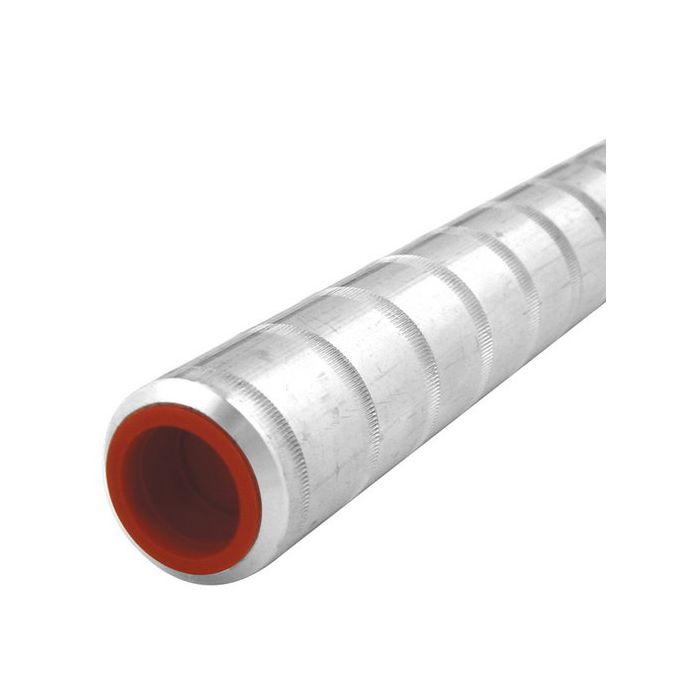

Cabac Full Tension Sleeve R Style 6/4.75 7/1.60 120mm Cherry
Cabac Full Tension Sleeve R Style 6/4.75 7/1.60 120mm Cherry
In stock
SKU
CAAAFT61R
Full Tension Sleeve, R Style, 120 mm, Number of Strands: 6/4.75 7/1.60 ACSR, ACSR Conductor Name: Cherry, Aluminium, 15.46mm Inside Diameter, 14.3mm Conductor Outside Diameter, 505 mm Length, A/F Hex Die: 22 mm, Crimping Die: HT150/185AL, 11 Crimps
| Features |
|
|---|---|
| Brand | Cabac |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | AFT61R |
| ACSR Conductor Name | Cherry |
| Conductor Outside Diameter | 14.3mm |
| Conductor Size | 120 mm |
| Crimping Die | HT150/185AL |
| Inside Diameter | 15.46mm |
| Length | 505mm |
| Number of Crimps | 11 |
| Number of Strands | 6/4.75 7/1.60 ACSR |
| Product Type | Tension Sleeves |
Description
Full Tension Sleeve, R Style, 120 mm, Number of Strands: 6/4.75 7/1.60 ACSR, ACSR Conductor Name: Cherry, Aluminium, 15.46mm Inside Diameter, 14.3mm Conductor Outside Diameter, 505 mm Length, A/F Hex Die: 22 mm, Crimping Die: HT150/185AL, 11 Crimps
