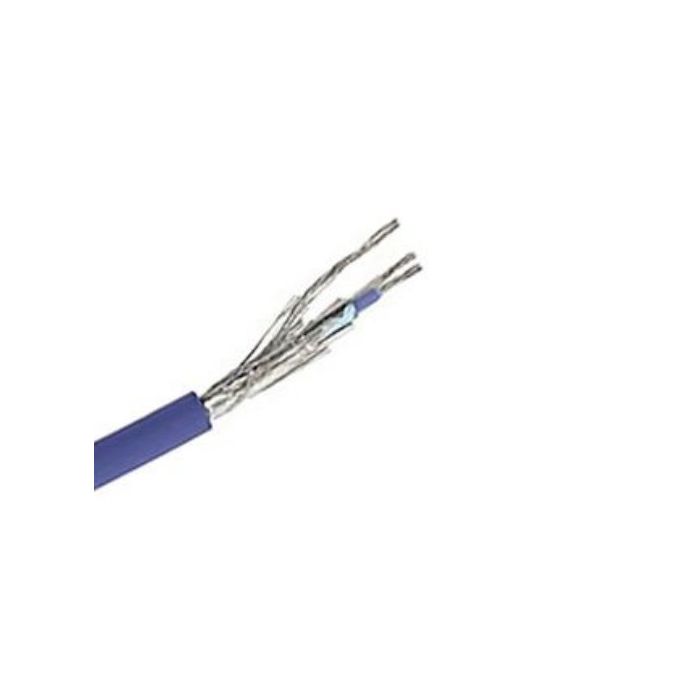

Belden Twinaxial Coaxial Cable 78Ohm 20AWG 7x28 PE/AL/PE/PVC Blue
Belden Twinaxial Coaxial Cable 78Ohm 20AWG 7x28 PE/AL/PE/PVC Blue
In stock
SKU
BEL9463J221000
Twin axial Coaxial Cable, 300 Volt, 20 AWG, Tinned Copper, Bend Radius: 60.960mm, 1 Pair, Pulling Tension: 213.514 N, Stranding: 7 x 28, Conductor Resistance: 31.1695 Ohm/km at 20 deg C, Capacitance: Conductor: 64.6357 pF/mtr, Conductor to Shield: 118.116 pF/mtr, 78 Ohm Impedance, Tinned Copper 55% Coverage Braid, Polyethylene Insulation, PVC Sheath, Aluminium Foil-Polyester Tape 100% Coverage Screen, Clear and Blue Insulation, Blue Sheath, 6.045 mm Overall Diameter,-40 to 80 deg C
| Brand | Belden |
|---|---|
| Standard Pack Size | 305 |
| UNSPSC Class | 52161600 |
| UOM | MTR |
| Vendor Product | 9463 J221000 |
| Temperature | 40 to 80 deg C |
| Product Type | simple |
Description
Twin axial Coaxial Cable, 300 Volt, 20 AWG, Tinned Copper, Bend Radius: 60.960mm, 1 Pair, Pulling Tension: 213.514 N, Stranding: 7 x 28, Conductor Resistance: 31.1695 Ohm/km at 20 deg C, Capacitance: Conductor: 64.6357 pF/mtr, Conductor to Shield: 118.116 pF/mtr, 78 Ohm Impedance, Tinned Copper 55% Coverage Braid, Polyethylene Insulation, PVC Sheath, Aluminium Foil-Polyester Tape 100% Coverage Screen, Clear and Blue Insulation, Blue Sheath, 6.045 mm Overall Diameter,-40 to 80 deg C
