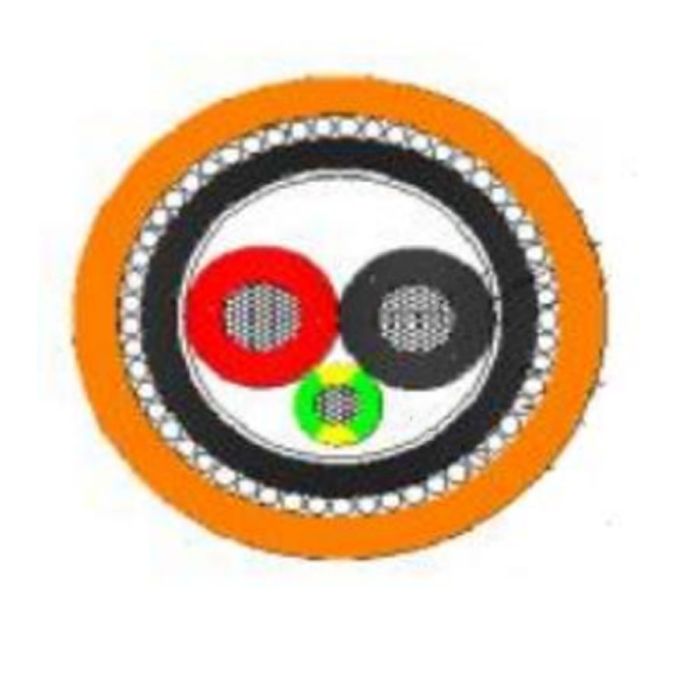

Circular Armoured 2C+E 6mm XLPE/SWA/PVC Orange 0.6/1kV
APEC 6mm Orange Circular Power Cable Armoured 2 Core & Earth XLPE/Steel Wire/PVC 1mtr
Circular Power Cable, Armoured, 2 Core & Earth, 6 mm, Annealed Copper, 0.6/1 kV, 2.5 mm Earth Conductor, 15.28 mm Diameter Over Armour, 20.1 mm Overall Diameter, 0.7 mm Insulation Thickness, 1.8 mm Sheath Thickness, Steel Wire Armour, XLPE Insulation, PVC Sheath, Red Black Green/Yellow Cores, Orange Sheath, 90 deg C, AS/NZS 5000.1
Brand | APEC |
---|---|
Standard Pack Size | 1 |
UNSPSC Class | 26121600 |
UOM | MTR |
Vendor Product | MXS006E02 |
Armour Material | Steel Wire |
Conductor Type | Annealed Copper |
Core Colours | Red/Black/Green/Yellow |
Insulation Material | XLPE |
Diameter Over Armour | 15.28 mm |
Insulation Thickness | 0.7 mm |
Overall Diameter | 20.1 mm |
Product Type | Cables Circular SWA |
Sheath Colour | Orange |
Sheath Material | PVC |
Standards | AS/NZS 5000.1 |
Voltage | 0.6-1 kV |
Temperature | 90 deg C |
Sheath Thickness | 1.8 mm |
Number of Cores | 2 + Earth |
Earth Conductor Size | 2.5 mm |
Conductor Size | 6 mm |
Description
Circular Power Cable, Armoured, 2 Core & Earth, 6 mm, Annealed Copper, 0.6/1 kV, 2.5 mm Earth Conductor, 15.28 mm Diameter Over Armour, 20.1 mm Overall Diameter, 0.7 mm Insulation Thickness, 1.8 mm Sheath Thickness, Steel Wire Armour, XLPE Insulation, PVC Sheath, Red Black Green/Yellow Cores, Orange Sheath, 90 deg C, AS/NZS 5000.1
